Produto Usado - Helicoptero Align T-Rex 700e DFC HV
Avaliação dos clientes: ( )
Marca: Align
Disponibilidade:

De: R$ 4.200,00
R$ 3.900,00
(Você economiza R$ 300,00)









  • Descriçao do Produto
  • Comentários de Clientes
  • Video do Produto

KX018E15

Equipped with the low CG DFC rotor head, exhibits exhilarating 3D performance and unimaginable flight speed.

KX018E15

Dual section battery mount.


KX018E15

Innovative sliding battery tray rails imbedded into 3K side frame, providing easy battery access and protection.

KX018E15

Brand new CCPM direct servo linkage design & new 750MX brushless motor. New style linkage rod design, complete assembly increases linkage rod rigidity.


KX018E15

Utilizes high spec M1 112T CNC helical main gear and M1 tail drive helical gear.

KX018E15

Utilizes composite carbon material integration technique on frame structure for CCPM servos.


KX018E15

A7075-T6 Aluminum alloy material and CNC processed Metal Anti Rotation Bracket.

KX018E15

New CNC aluminum alloy mounting plate and precision CNC machined aluminum pieces including rudderr servo mount.


KX018E15

Utilizes dual point attachment design for zero play and higher precision control feel.

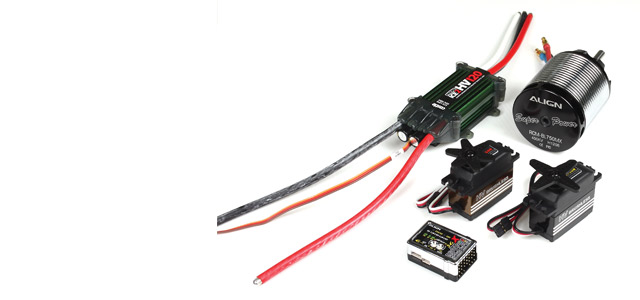

Standard equipment

●Castle ICE2 HV 120 Brushless ESC
●750MX Brushless Motor(530KV)
●BL750H High Voltage Brushless Servo
●BL700H High Voltage Brushless Servo x 3
●3GX Flybarless system
KX018E15

Specification

● Length: 1345mm
● Height: 360mm
● Width: 208mm
● Main Blade Length: 690mm
● Main Rotor Diameter: 1562mm
● Tail Rotor Diameter: 281mm
● Motor Drive Gear:12T
● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 22T
● Drive Gear Ratio: 1:9.33:4.37
● Weight(With Motor): 2900g

Accessories

●T-REX 700E DFC Kits Set x 1set
●Aluminum Tail Boom x 1
●3K Carbon Fiber Tail Boom x 1
●690 3G Carbon Fiber Blades x 1set
●750MX Brushless Motor(530KV) x 1
●3GX Flybarless system x 1
●BL700H High Voltage Brushless Servo x 3
●BL750H High Voltage Brushless Servo x 1
●Castle ICE2 HV 120 Brushless ESC x 1
●105mm 3K Carbon Fiber Tail Blades x 1set


Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 4500 ~ 5200mAh x 2
●2S Li-Po 1900 ~ 2300mAh x 1
●Dial Pitch Gauge


3GX Programmable Flybarless System

KX018E15
●Brand new redesigned 3GX represents a new generation of multi function flybarless system. The dramatically improved performance will create immediate impact on any enthusiasts.
●3GX is currently the smallest and lightest flybarless system on the market. Two ports to directly connect Spektrum and JR satellite receivers, along with full support of Futaba's S-BUS system.
●Based on the 3G FL760 manual setup process, the 3GX can be setup in a few minutes through a simple process. In addition, the 3GX can support all of the CCPM swashplate system currently on the market including 90, 120, 135, and 140 degrees swashplates....[+] More

3GX Programmable Flybarless System

●Operating voltage range:DC 3.5V~8.4V
●Operating current consumption:<80mA @4.8V
●X and Y axis Operating Angle Range:-300~+300 degree
●Z axis Operating Angle Range:-600~+600 degree
●Sensor resolution:12bit
●Supports 90/120/135/140 CCPM swashplates
●Spektrum and JR Satellite antennas support (Replaces original factory receiver)
●Futaba S.BUS system support
●Supports Wide/Narrow Bandwidth Digital and brushless servos
●Compatible with 2 to 5 blades rotor heads



●Built in governor function
●Maximum working voltage:8.5V
●Compatible with 1024/2048 resolution Spektrum receivers
●Field setup without the use of a PC
●Support up to 6 servos
●Automatic servo type recognization
●Operating Temperature:-20~60 degree
●Operating Humidity:0%~95%
●Size:36.5x25.2x15.6 mm Size
●Weight:11g
